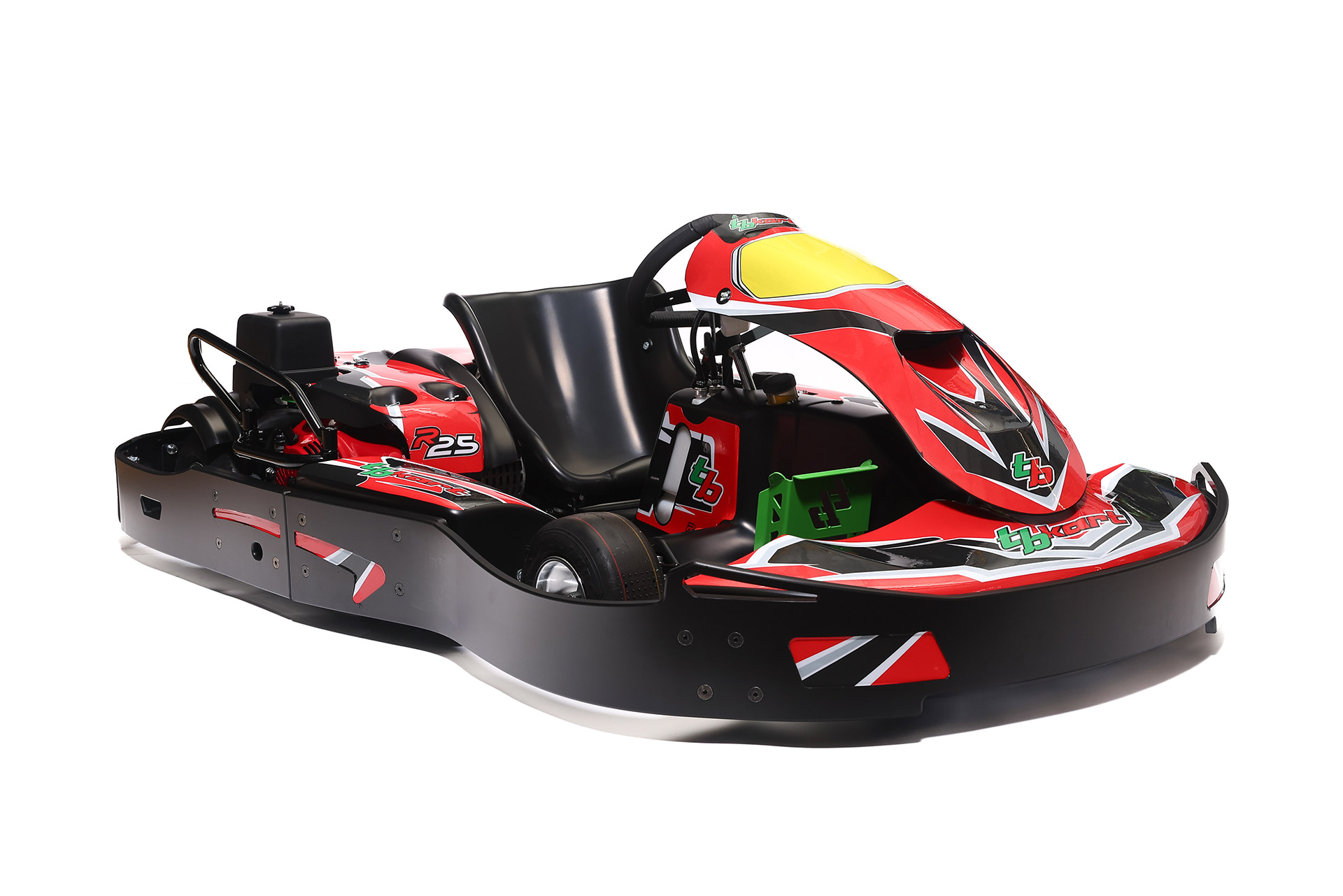

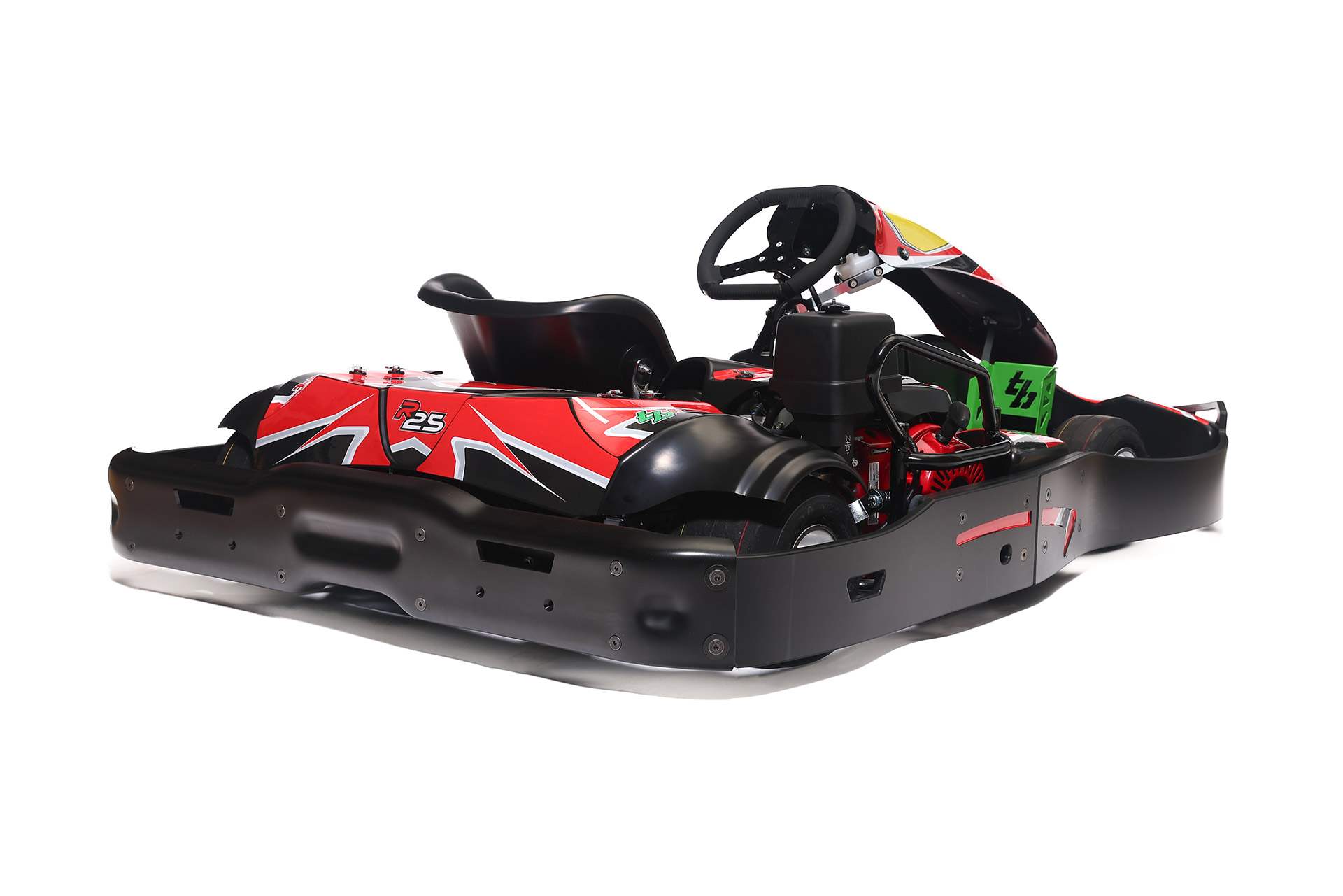

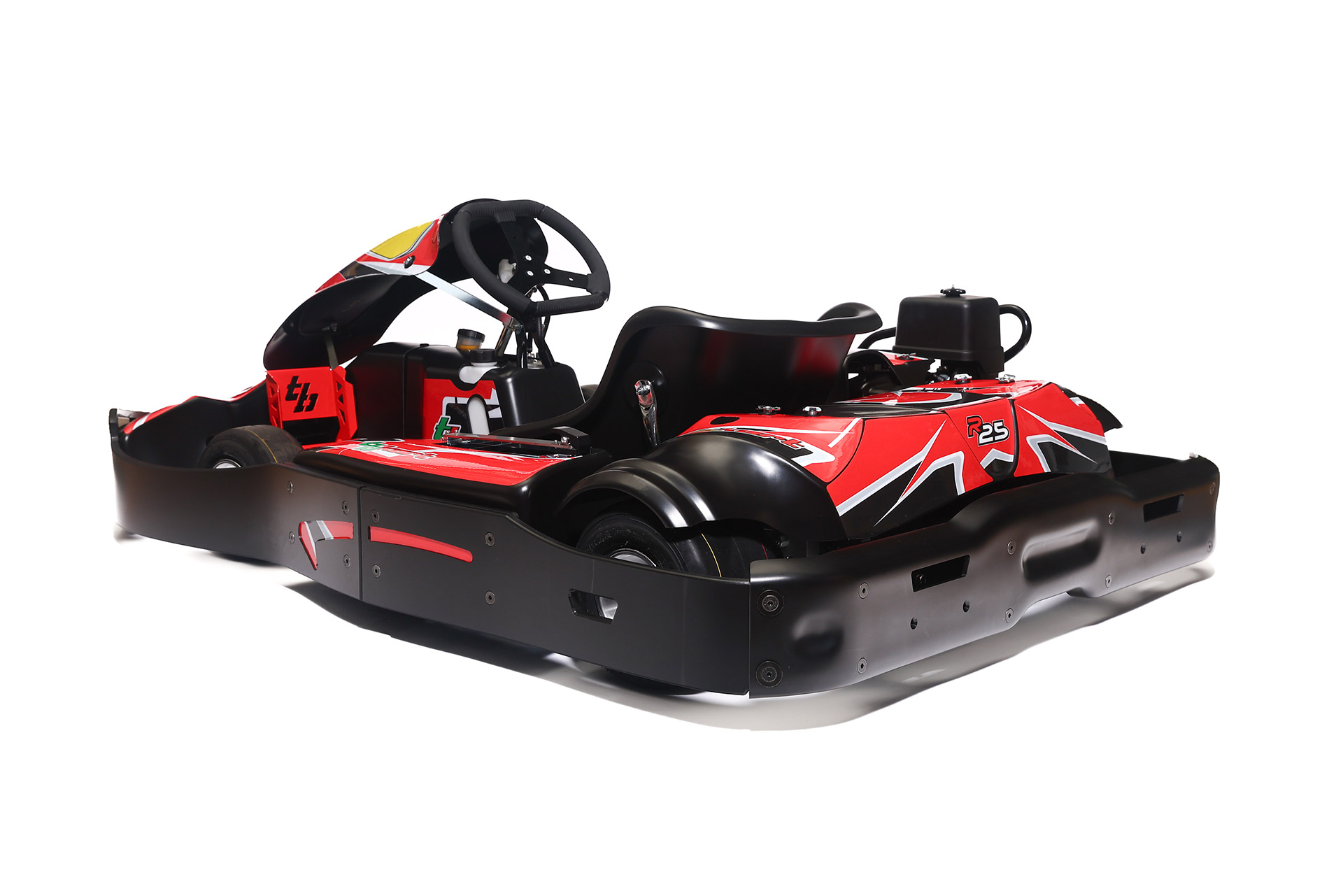

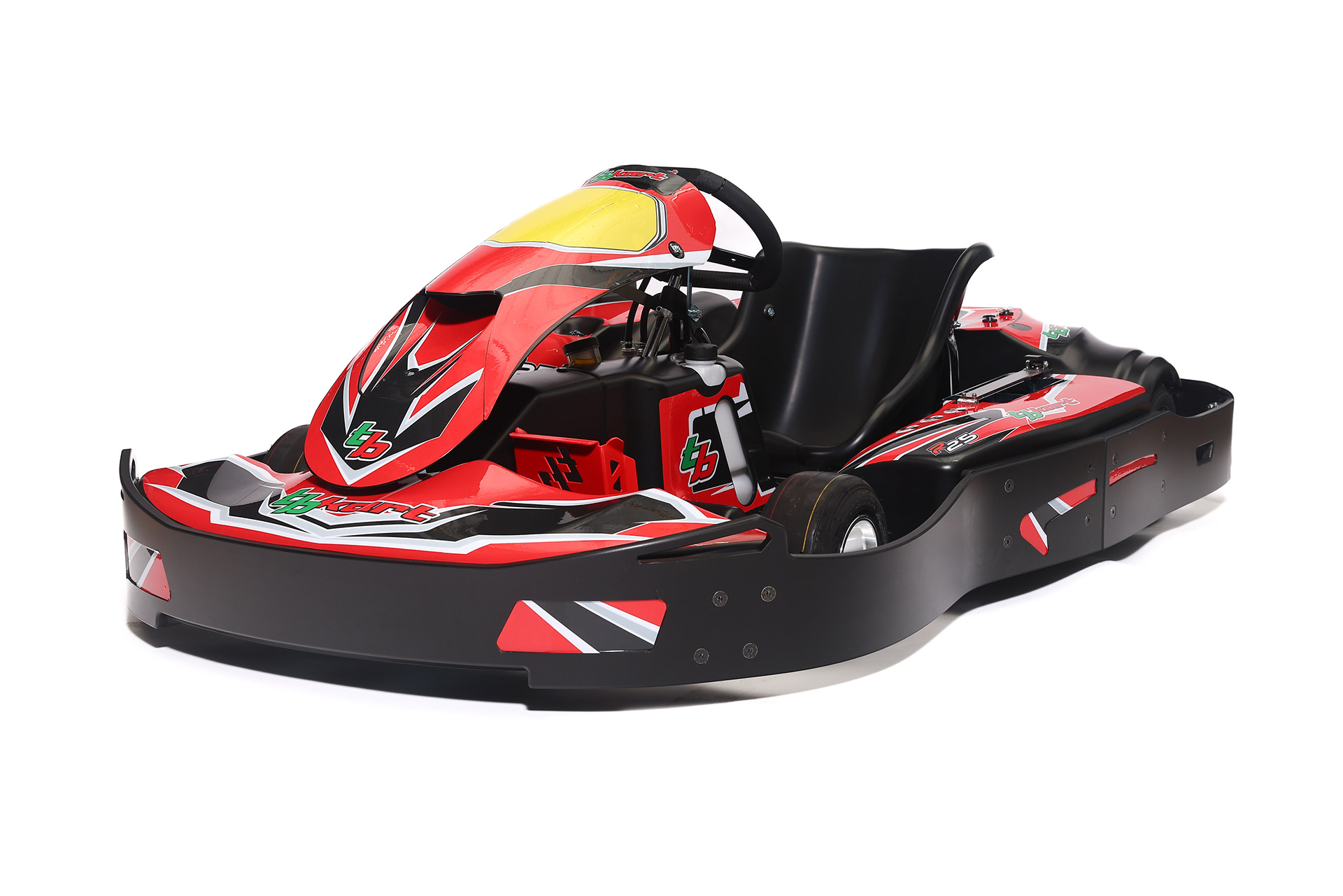

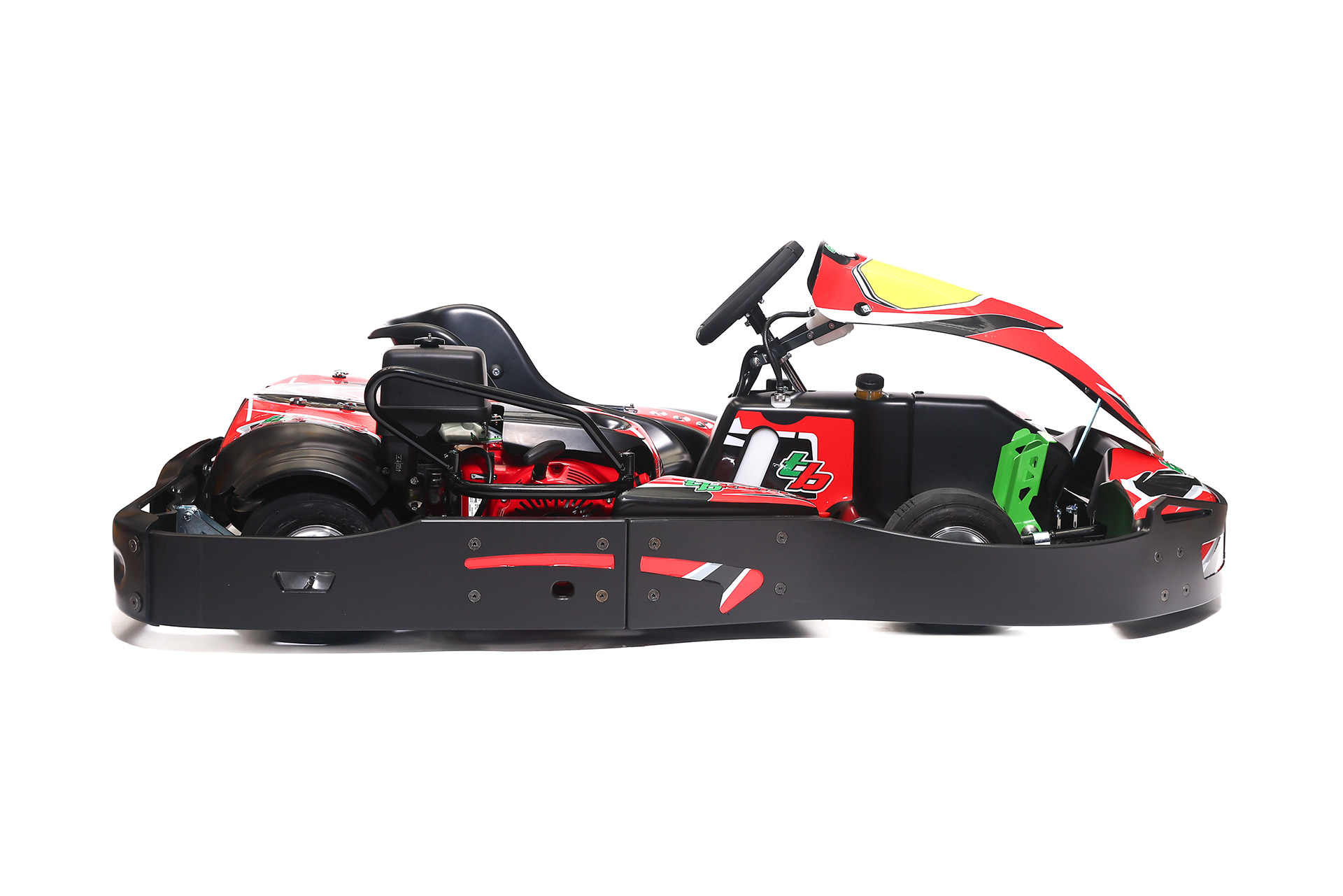

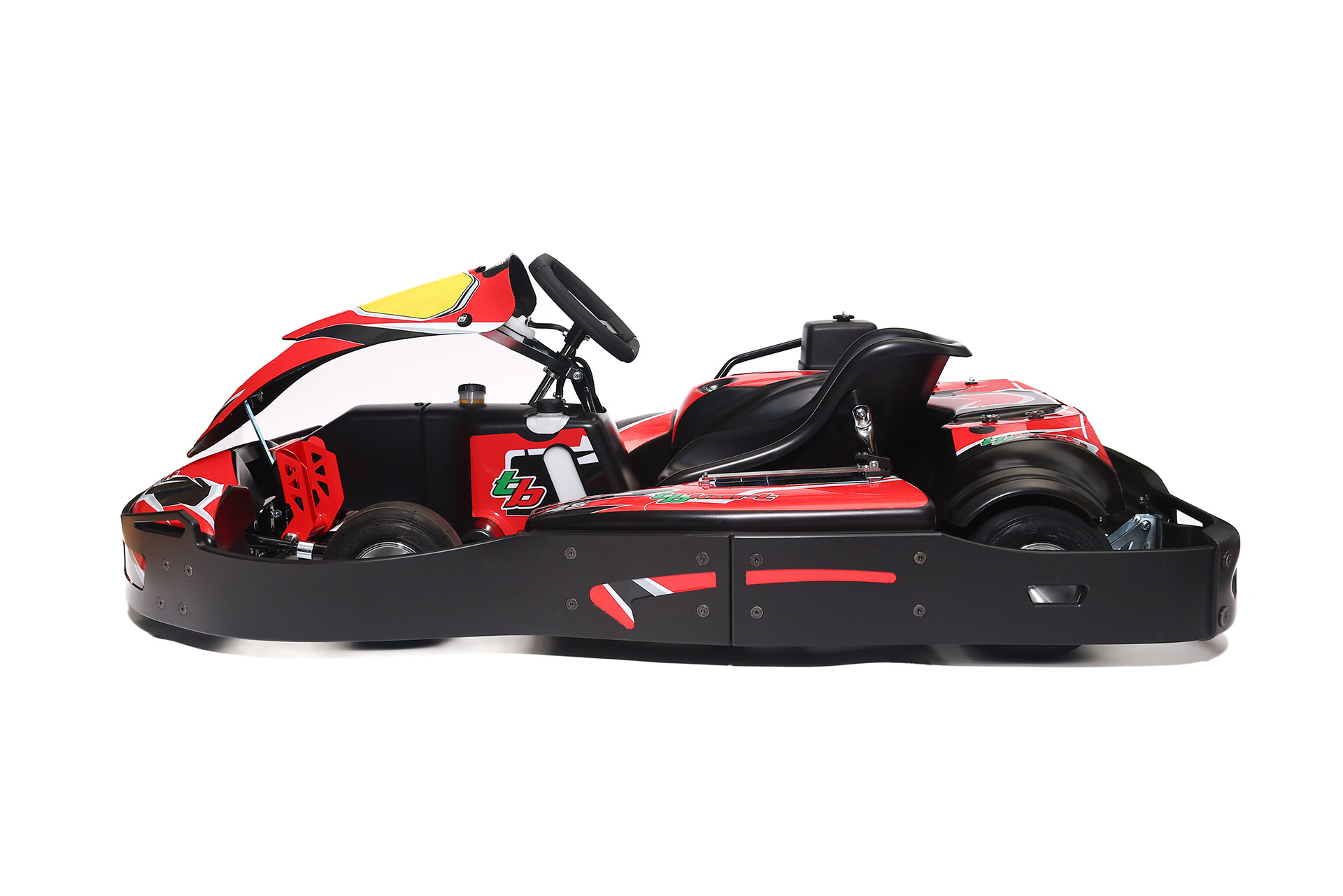

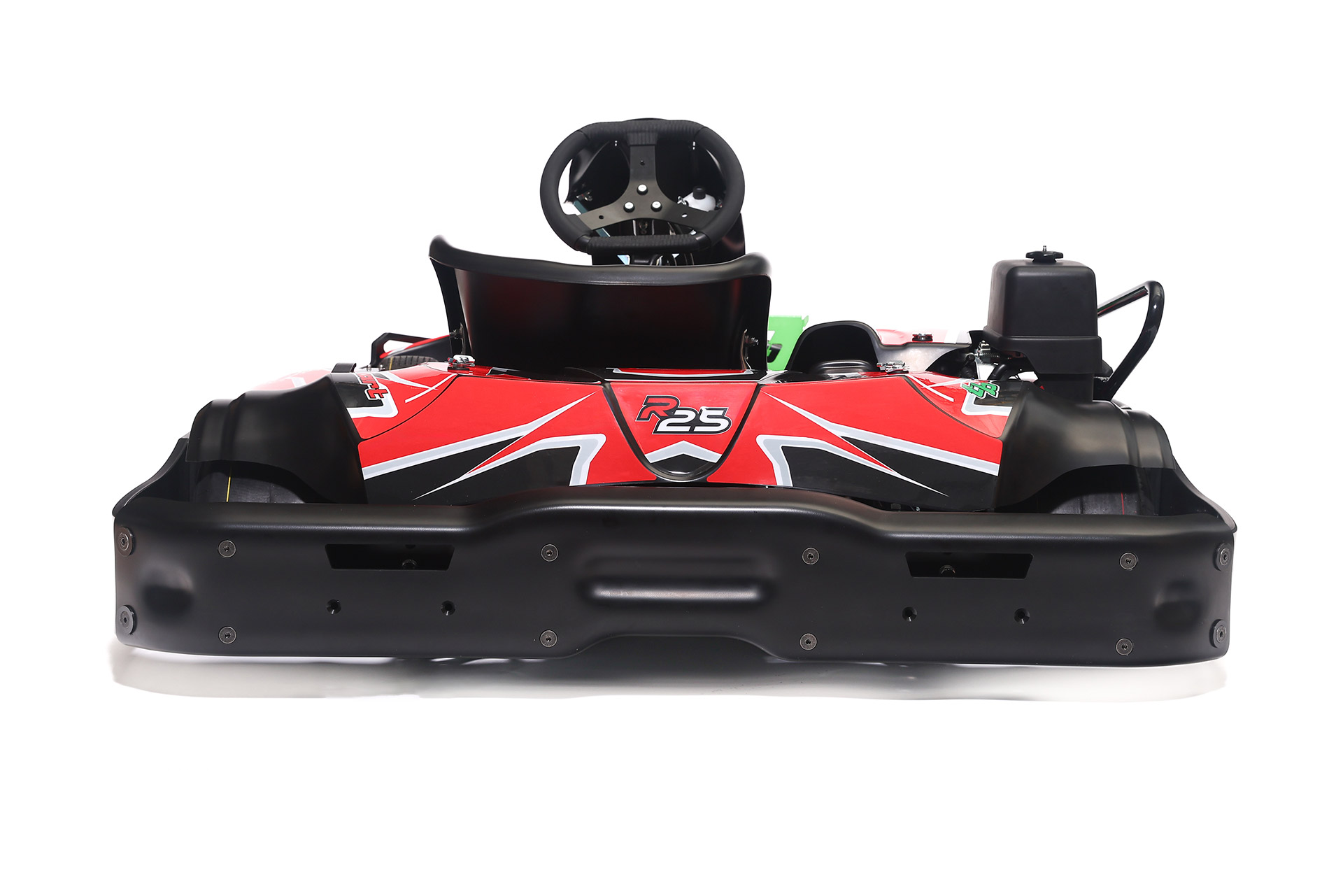

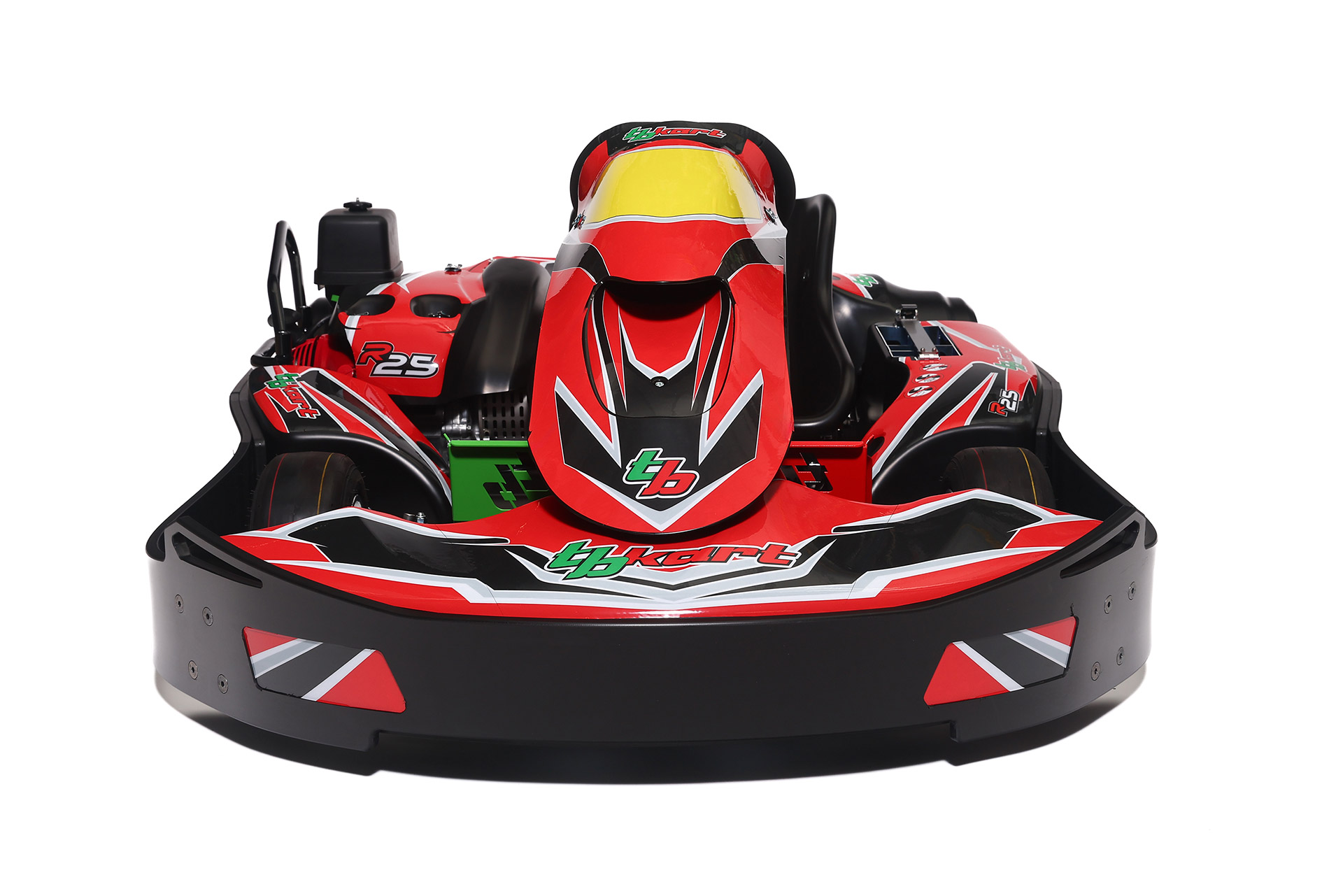

TBKART R25
The feather in the cap for Rental karts, even in its “naked” version
Identikit
12+ years-old
145 cm
Low
Medium
Heir to the historic R15, the R25 model is the flagship product of TBKART’s Rental line. It represents the ideal choice for all those facilities that need an extremely reliable and versatile fleet of rental karts. Cutting-edge solutions (among which the I.S.A.C. Safety System and dual protection stand out) ensure the highest standards of quality and safety for a product suitable for a wide variety of users and uses, from the classic “free practice” laps to corporate events. The multiple adjustment options for the seat and pedals – which together reach a total range of about 30 cm – make the R25 unique in the ease with which it can accommodate drivers of all heights. The new larger-sized steering wheel, then, reduces driver fatigue and allows users to take full advantage of more driving sessions. The design of the R25 has also taken into account the need for speed and ease of action by the work crew in daily maintenance operations, as evidenced by the new detachable independent side bumper and the quick release fastening clips for the fairings. Also for this reason, the R25 is the Rental model produced by TBKART, most recognized and appreciated internationally. Its standard and optional equipment (including rollbars and seat belts) enables it to meet the legal requirements of a variety of markets and countries. Furthermore, to express the Racing style it embodies more clearly, the R25 is even available in a naked version, with a floor pan without covers and thus similar to that of a racing kart (while retaining the integral protections of other components such as engine, braking system and axle).
TBKART R25
The feather in the cap for Rental karts, even in its “naked” version
Identikit
Heir to the historic R15, the R25 model is the flagship product of TBKART’s Rental line. It represents the ideal choice for all those facilities that need an extremely reliable and versatile fleet of rental karts. Cutting-edge solutions (among which the I.S.A.C. Safety System and dual protection stand out) ensure the highest standards of quality and safety for a product suitable for a wide variety of users and uses, from the classic “free practice” laps to corporate events. The multiple adjustment options for the seat and pedals – which together reach a total range of about 30 cm – make the R25 unique in the ease with which it can accommodate drivers of all heights. The new larger-sized steering wheel, then, reduces driver fatigue and allows users to take full advantage of more driving sessions. The design of the R25 has also taken into account the need for speed and ease of action by the work crew in daily maintenance operations, as evidenced by the new detachable independent side bumper and the quick release fastening clips for the fairings. Also for this reason, the R25 is the Rental model produced by TBKART, most recognized and appreciated internationally. Its standard and optional equipment (including rollbars and seat belts) enables it to meet the legal requirements of a variety of markets and countries. Furthermore, to express the Racing style it embodies more clearly, the R25 is even available in a naked version, with a floor pan without covers and thus similar to that of a racing kart (while retaining the integral protections of other components such as engine, braking system and axle).
Designed and developed in-house, it represents an added value in terms of protection both for the driver and the vehicle itself. It is a distinctive feature of the R25, patented by TBKART, and an incredibly unique, one of a kind, technology they offer.
WITH A REMARKABLE SHOCK-ABSORBING ABILITY, EVEN IN THE EVENT OF VIOLENT IMPACTS, IT CONTRIBUTES TO FURTHER REDUCE THE RISKS AND COSTS OF MY BUSINESS!
WITH THE R25 FLEET, IT COULD HAPPEN THAT THE MUFFLER WOULD BE DAMAGED BY THE REAR BUMPER, WHICH IS SUBJECTED TO THE MOST VIOLENT IMPACTS. THANKS TO THE IMPROVEMENT APPLIED BY TBKART, I HAVE NO LONGER ENCOUNTERED SUCH DAMAGES IN THE R25 FLEET!
A small solution with great potential. Designed to prevent the steering arm from flexing excessively, it drastically reduces the stress placed on a potential failure point of the chassis.
IT IS ONE OF THE MANY BRILLIANT IDEAS OF TBKART, WHICH HAS BEEN SATISFYING MY KARTING NEEDS FOR YEARS AND OPTIMIZES THE RELIABILITY OF ITS PRODUCTS WITH SOLUTIONS THAT ARE AS SIMPLE AS THEY ARE EFFECTIVE!

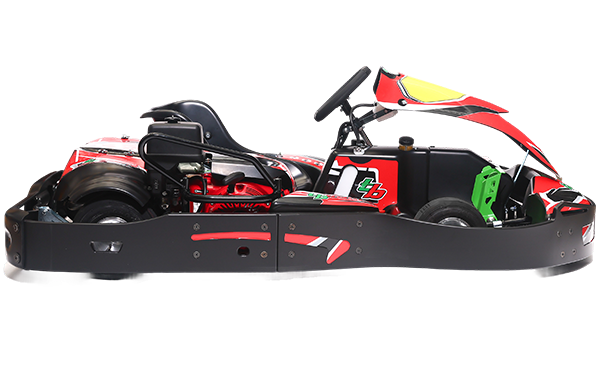

standard
optional
not available
CE Certification
Adjustable seat
Adjustable pedals
Brake gas kit / Sistema salva frizione (Clutch saver system)
Aluminium wheels reinforced
Stub axle diameter 20 mm reinforced
Bearing supports model “Fast” decomposable
Rear axle diameter 30 mm solid
Rear axle diameter 40 x 5 mm
Rear axle diameter 50 x 2 mm
Ergonomic seat size XXL
Ergonomic seat size M
Padded seat
Steering wheel 330 mm
Steering wheel 350 mm
Self adjusting hydraulic brake system
Ventilated rear brake disc, thickness 18 mm
Brake disc protection
Fuel tank 4,5 lt
Fuel tank 8,5 lt
Fuel tank 9,5 lt
Fuel Tank Original Honda
Carenatura serbatoio (Fuel tank fairing)
Cover pianale e tiranti sterzo (Naked version - without floor plate and steering tie rods/system cover / racing style floor plan)
Engine protection
Transmission by chain
Transmission by belt drive
Perimetral protection model HIGH
Front Extra protection model HIGH Shutdown Transponder (Remote control) Pedali massima sicurezza (Maximum safety pedals) Roll bar/ 4-point seat belt Roll bar/ 3-point seat belt
Brake LED light
Front LED light Hour meter Weight box Ultra silent version Stickers Personalization Adaptable seat (from XXL to M size) Ice version Catalitic converter
HONDA GX 120cc
HONDA GX 160cc HONDA GX 200cc HONDA GX 270cc HONDA GX 270cc HP HONDA GX 390cc ROTAX 21hp ROTAX 28hp
A travel range of 18 cm, thanks to a sliding pedal rail that can quickly accommodate users of all heights.
A reinforced sliding structure to ensure a displacement range of 11 cm and an excellent driving comfort for all users.
A larger diameter steering wheel reduces the physical effort required and provides a captivating look with its unique racing style.
All-around protection to ensure the highest safety standards that safeguard both the driver and the kart.
The ability to remove the entire axle block by working only on the four bearing screws, results in significant advantages in terms of time and ease of maintenance.
A braking system that benefits from the expertise of TBKART Racing Team and features cutting-edge technology to ensure excellent performance with maximum safety.
A “must have” solution that promotes both the longevity of the kart and the safety of users (even the most inexperienced), by automatically deactivating the accelerator when the brake is applied.
Designed to best contain the foot in the most varied driving conditions, they eliminate the risk of losing control of the pedal commands, whatever the size of the driver’s shoes.
Designed to accommodate all users with an optimal riding position and the comfort needed to enjoy the adrenaline rush offered by the kart.
Large capacity coupled with ample autonomy, with the addition of a fairing that protects and, at the same time, allows you to easily evaluate the amount of fuel thanks to its opening.
A double protective band to achieve greater strength in the critical points of a Rental kart, while further reducing the risks resulting from impacts.
All useful technological solutions to absorb shocks and dampen the impact of vibrations are consistently applied on TBKART Rental karts.
A preventive measure that increases strength and makes the difference in a sensitive part of the kart, reassuring both drivers and mechanics.
A simple and intuitive system to allow technicians to easily “undress” and “re-dress” the kart, speeding up daily maintenance and inspection tasks.
To provide complete protection to users and comply with international regulations, making the product attractive worldwide.
An additional protection system that safeguards drivers in the event of impacts and increases the sense of safety perceived while driving.
A large and easy space to accommodate the ballast, ideal for easily achieving consistency in weight distribution for participants in events such as endurance races.
A nice touch of class thanks to the sleek design, as well as another demonstration of TBKART’s focus on safety, with LED lights that illuminate to indicate when the kart is braking.
